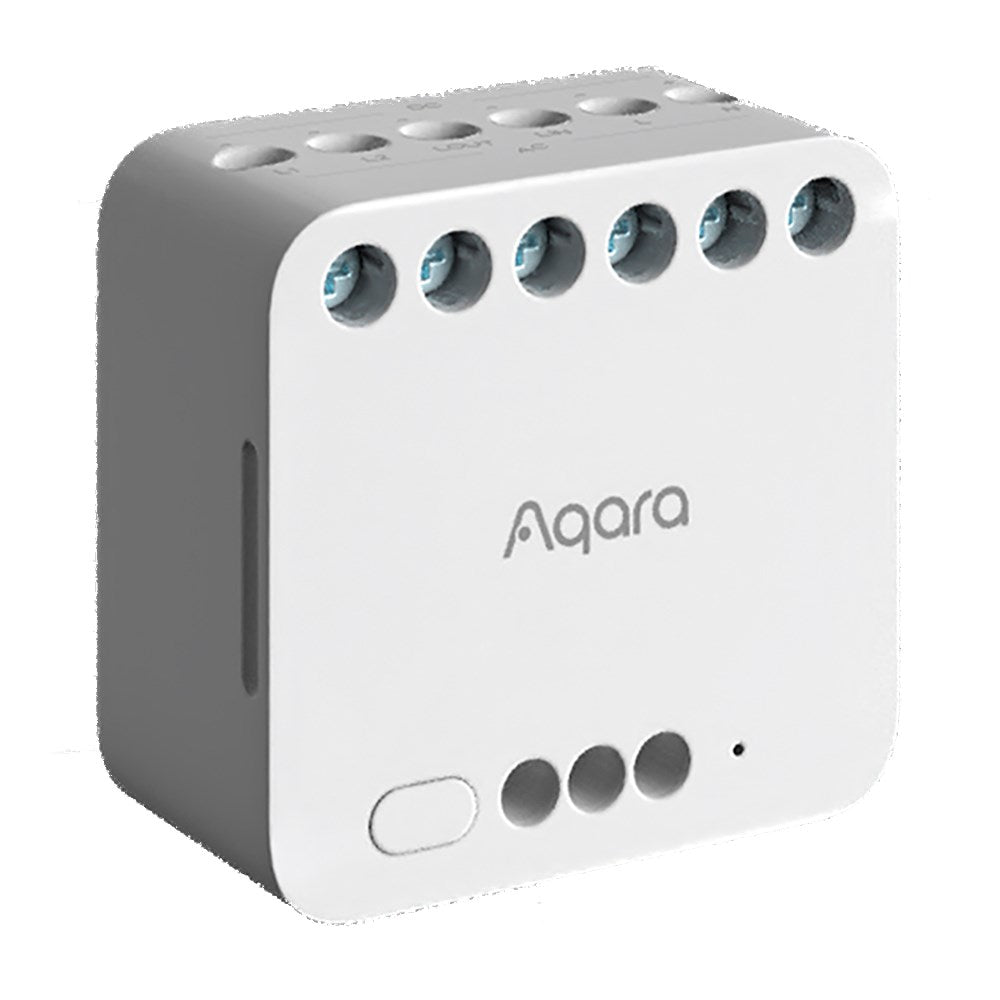

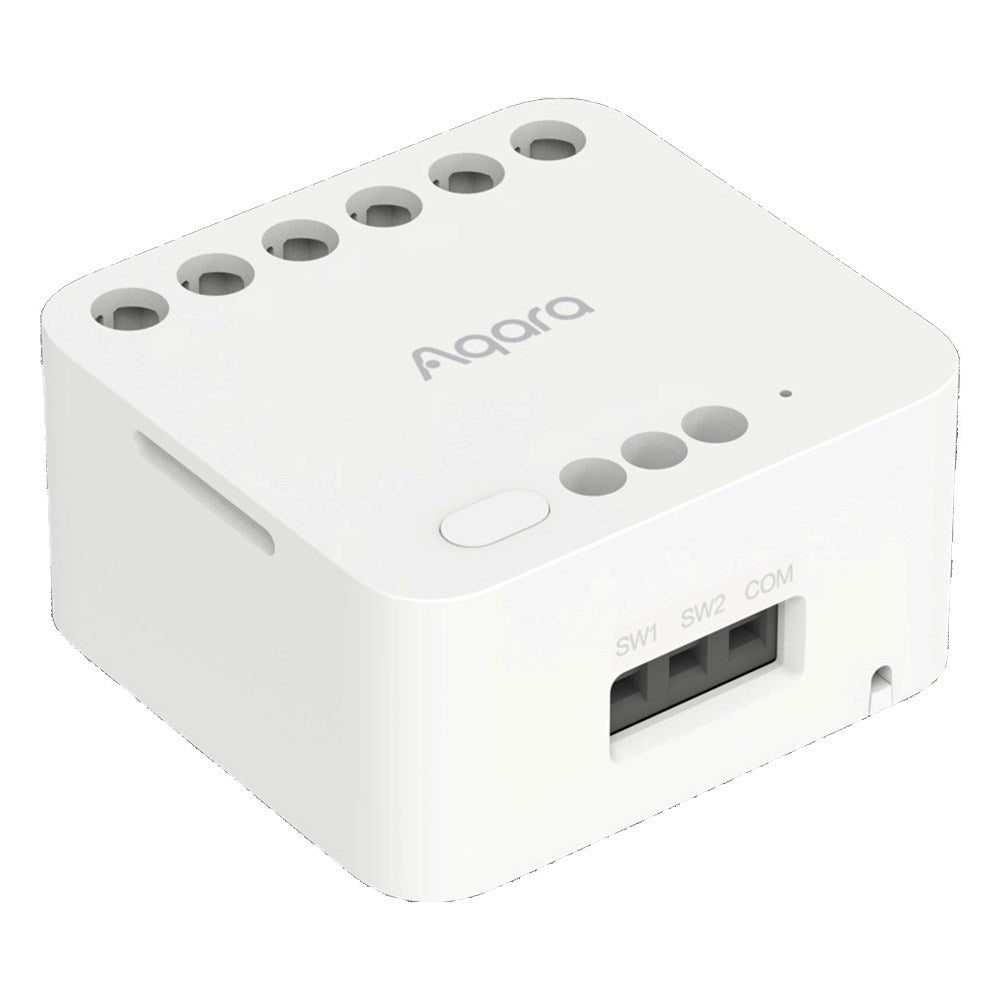

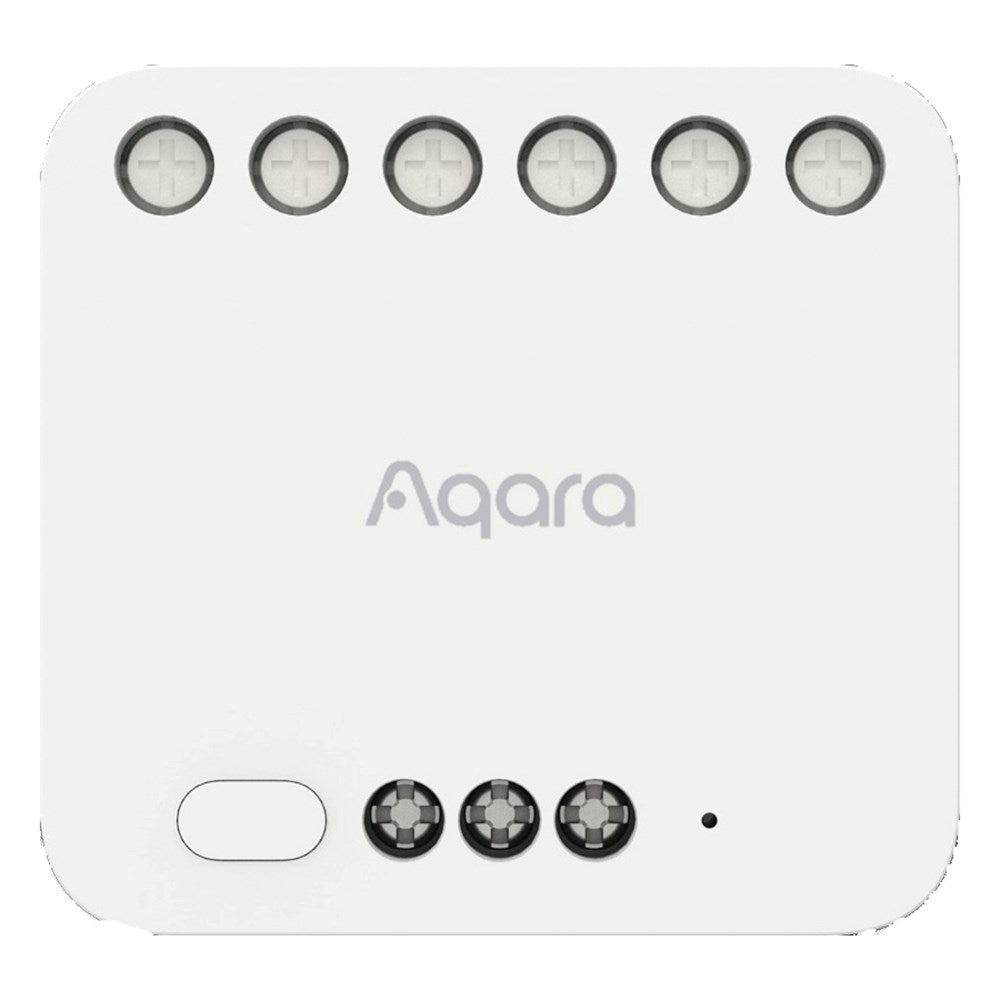

Dual Relay Module T2 Smart Relay - White

The Aqara Dual Relay Module T2 is a smart home relay switch designed to be installed behind any socket or wall box. This device opens up the possibility to integrate all home electrical appliances into a smart home ecosystem. By connecting the Aqara Dual Relay Module T2 to sockets, you can automate their functions and control them directly from a connected mobile phone.

With its compact size, the Aqara Dual Relay Module T2 can be easily and discreetly mounted in your lamp's ceiling rose or in flush-mounted wall boxes. Once installed, the Aqara Dual Relay Module T2 allows easy control of your lights or other appliances via your phone. You can customize your lights according to your daily routine using personal schedules and save energy at the same time. For example, you can set your hallway lights to turn off automatically after bedtime, ensuring a peaceful night's sleep for the whole family. And the best part is, you can still use your existing light switches manually to meet everyone's needs in your home. Thanks to its compact design, the Aqara Dual Relay Module T2 can be installed flexibly. For instance, you can install it directly in your garage door opener or near the motor. With its ability to handle up to 10A of current, it can reliably control your garage door. This means you can easily operate your garage door from your mobile without having to use large external modules. With the Aqara Dual Relay Module T2, you can automate all the electricity in your home for a more convenient and comfortable daily life.

The Aqara Dual Relay Module T2 is a potential-free contact, which refers to a switch or relay where the two contact points (terminals) are not connected to any voltage source. This means they can be opened and closed without affecting the circuit they are connected to.

When you use a potential-free contact to control something, it does not need to be connected to the same voltage source (230V) as the relay or switch itself. For example, you can use a small switch to control something running on 12V, even though the relay is connected to 230V. This way, a potential-free contact allows isolating and ensuring that control and management of different voltages (such as 230V and 12V in this case) can be done safely and effectively.

Dimensions: 45.5 × 48 × 24 mm

This device is compatible with the following apps:

• Aqara Home
• Google Home
• Apple Home
• Amazon Alexa
• Homey

Zigbee
This device uses Zigbee for wireless communication with other Zigbee smart home devices.

Authorized electrician
Since this device needs to be connected to 230V, it must be installed by an authorized electrician.
